Our Top Brand

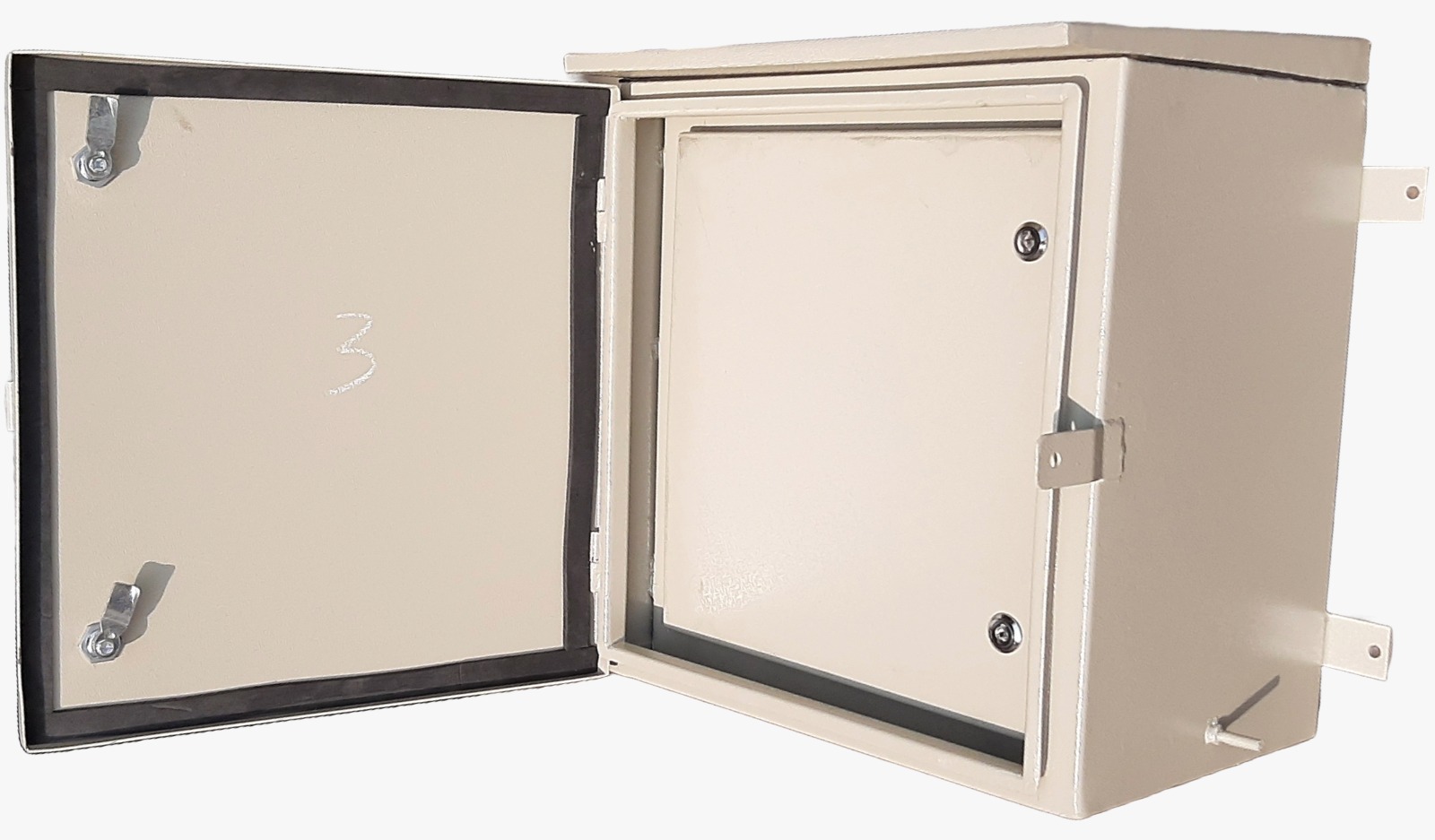

Elbox Enclosures

Constructional Features +

Available in - MILD STEEL, STAINLESS STEEL, CAST ALUMINUM, FRP, POLYCARBONATE/ABS
Water and dust proof conforming to degree of Ingress Protection IP 65/IP66
Rain Protection Canopy and double construction is provided for Outdoor Applications
Provided with mounting Lugs for wall mounting
Doors are bolted with 4 nos screws with suitable fasteners to prevent fall-off or fitted with heavy duty hinges with wide opening angles depending on requirement
Standard Cam locking arrangement provided in hinged door
Door sealing with Neoprene/ EPDM/PU gaskets
LOTO Provision can be provided for external locking of the enclosure as per requirement
Double earthing studs with nut and washer provided on both sides of the junction box
Cable Entry Provision : Removable type Gland Plate or Pre-drilled / Knock-out holes of dia 19 mm, 22 mm, 25 mm and 32 mm can be provided for cable entry
Available in many different sizes from 100x100x50 mm to 1200x800x600 mm

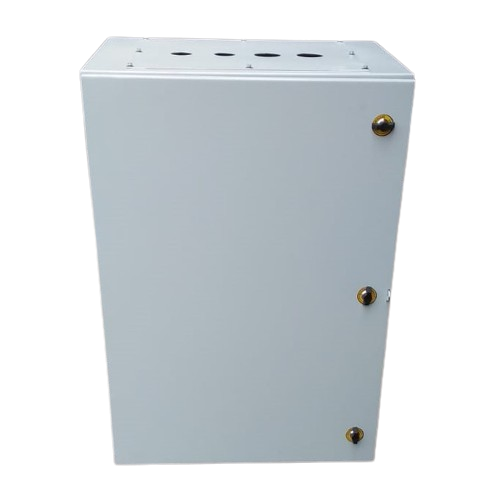

Elbox Mild Steel

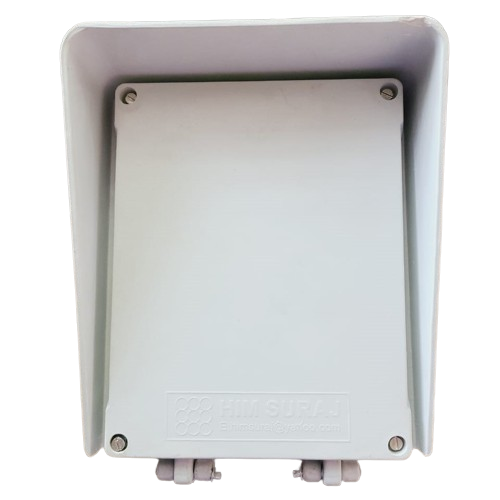

Elbox FRP

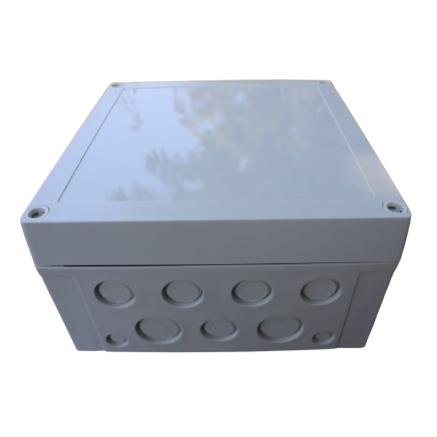

Elbox Polycarbonate

Elbox Stainless Steel

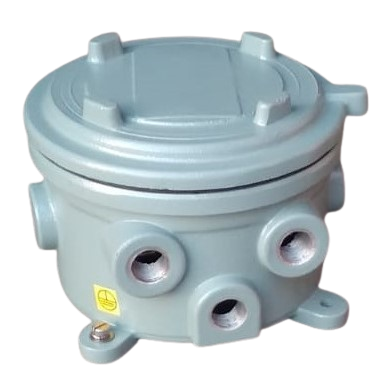

Elbox Aluminum
