Socket Boxes

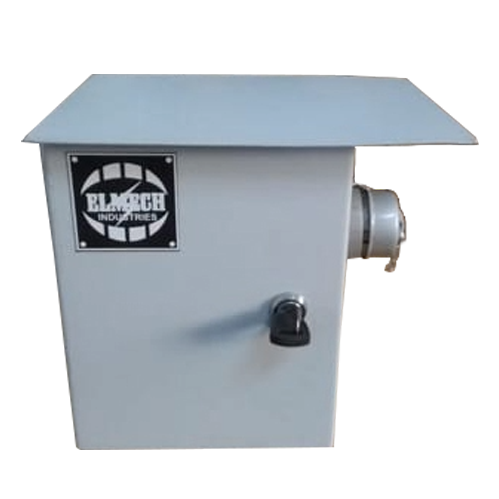

Mild Steel Enclosure Duly Powder Coated, Wall Mounting Type

Available in Single Phase 230V AC and 3 Phase 415V AC

Optional IP-65 Protective Cap Provided for ELCB/MCB

Double Earthing Bolts Provided on Both Sides of the Extension Box

Knock Out Holes for Incoming Cable Entry Provided at Bottom, Sides and Top as per requirement

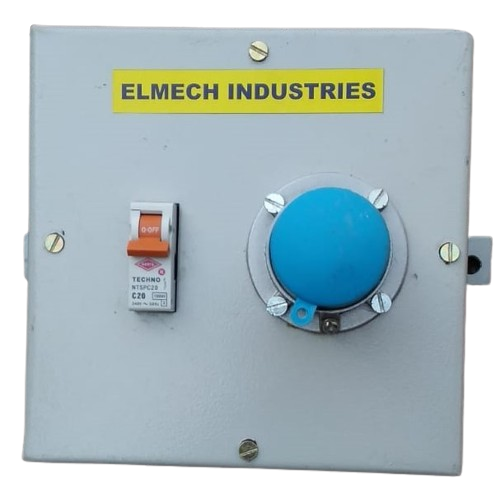

TYPE-1: Consists of 25A Double Pole MCB/ELCB with 20A 2P+E Plug and Socket, Pre-wired with 2.5 sq mm Copper Cable

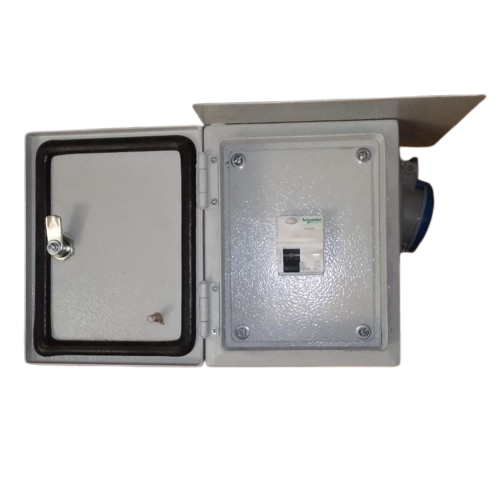

TYPE-2: Consists of 25A Double Pole MCB/ELCB with 20A 2P+E Plug and Socket Side Mounted, with Double Door and Canopy and Pre-wired with 2.5 sq mm Copper Cable

TYPE-3: Consists of 32A 4 Pole MCB/ELCB with 32A 3P+E Plug and Socket Pre-wired with 6 sq mm Copper Cable

TYPE-4: Consists of 63A 4 Pole MCB/ELCB with 63A 3P+N+E Plug and Socket Pre-wired with 16 sq mm Copper Cable
