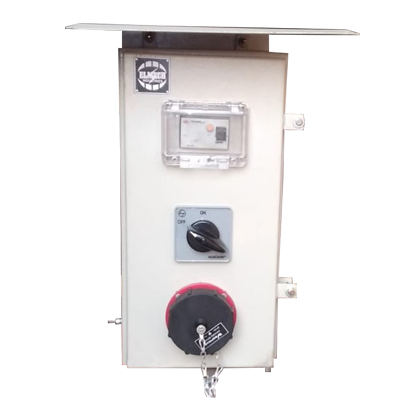

FULLY INTERLOCKED WELDING RECEPTACLES

ELBOX FULLY INTERLOCKED WELDING RECEPTACLES are used in heavy duty applications to prevent electrical arcing when fixed or portable heavy equipment are used in adverse conditions. Available in Powder coated mild steel, FRP and Polycarbonate material, these receptacles provide cost effective, safe and reliable means of power distribution to every industry.

Technical Features   +

  •   It consists of the switched socket units with the plugs and are available in the following ratings: 20A, 32A, 63A and 125A.
  •   There is mechanical interlocking between the switch and socket. The switch can only be turned on when the plug is fully inserted and the plug cannot be removed until the switch is off and the cover can only be opened when the switch is in "OFF" position
  •   These are designed conforming to IP 65 degree of ingress protection
  •   It comes with rain protection canopy which is best suited for outdoor application
  •   There is loop in and loop out facility available for incoming cable
  •   Double earthing provision is provided
  •   Knock out holes are provided at bottom for cable entry.
  •   These units are fully wired and ready to be installed
  •   Wall mounting arrangement is provided for installation
