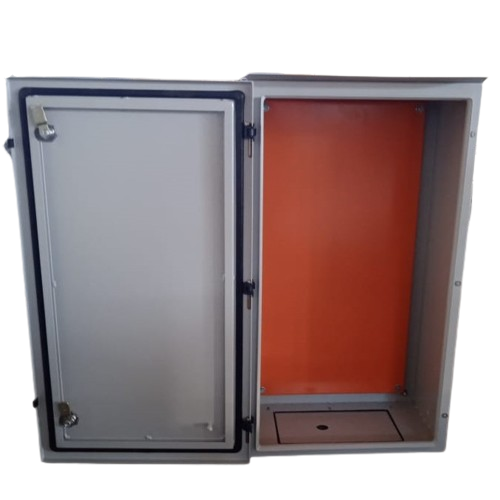

Elbox Mild Steel

Construction : Welded Main Body with Top and bottom made in 1.2/1.5 mm thick CRCA sheet

Protection Class :IP 66

Door/Cover :Made in 1.2/1.5 mm thick CRCA sheet and available in bolted cover design as well as hinged door design with lock/knob

Internal Mounting : Mounting Plate 2 mm thick CRCA in color shade RAL 2000 or 2 mm GPSP depending on requirement

External Mounting Arrangement : Wall/Structure Mounting

Gasket :Jointless polyurethane PU foamed in place gasketing.

Cable Entry :Top/Bottom/Side with knock out holes 19 mm, 22mm, 25 mm, 32 mm

Gland Plate :2 mm thick Removable type in Top/Bottom

Canopy :Slanting type Extended in front. Provided for outdoor applications

Locking arrangement :: ZINC COATED CAM LOCK - 2nos with 1 nos key. Padlock for external locking arrangement, if required.

FINISH :STRUCTURE FINISH IN COLOR SHADE RAL 7032/RAL 7035, EPOXY BASD POWER COATING AFTER SEVEN TANK PRE TREATMENT PRICESS
